U-Tube Double Wall in Hospitals

U-Tube Double Wall in Hospitals

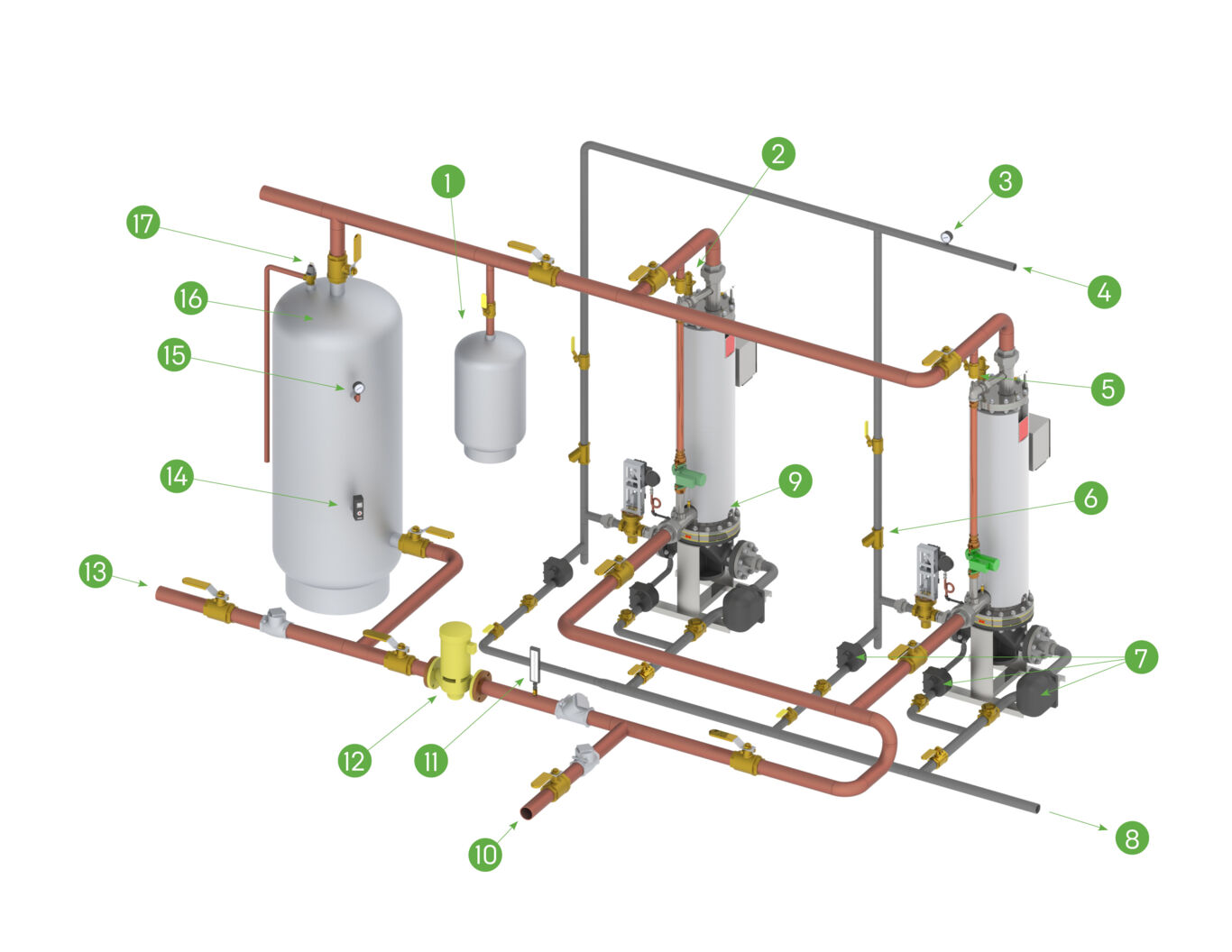

The U-Tube Double Wall water heater works well for most healthcare steam applications and provides a leak detection path to indicate service is required.


  1. Expansion Tank
  2. Relief Valve
  3. Pressure Gauge
  4. Steam Header
  5. Hose Connection
  6. Stainer
  7. Steam Traps
  8. Condensate Outlet
  9. Drain Valve
  10. House Recirculation
  11. Flow Indicator
  12. Pump
  13. Cold Water Inlet
  14. Temperature Switch Aquastat
  15. Temperature and Pressure Gauge
  16. Stratified Hot Water Storage Tank
  17. Relief Valve
