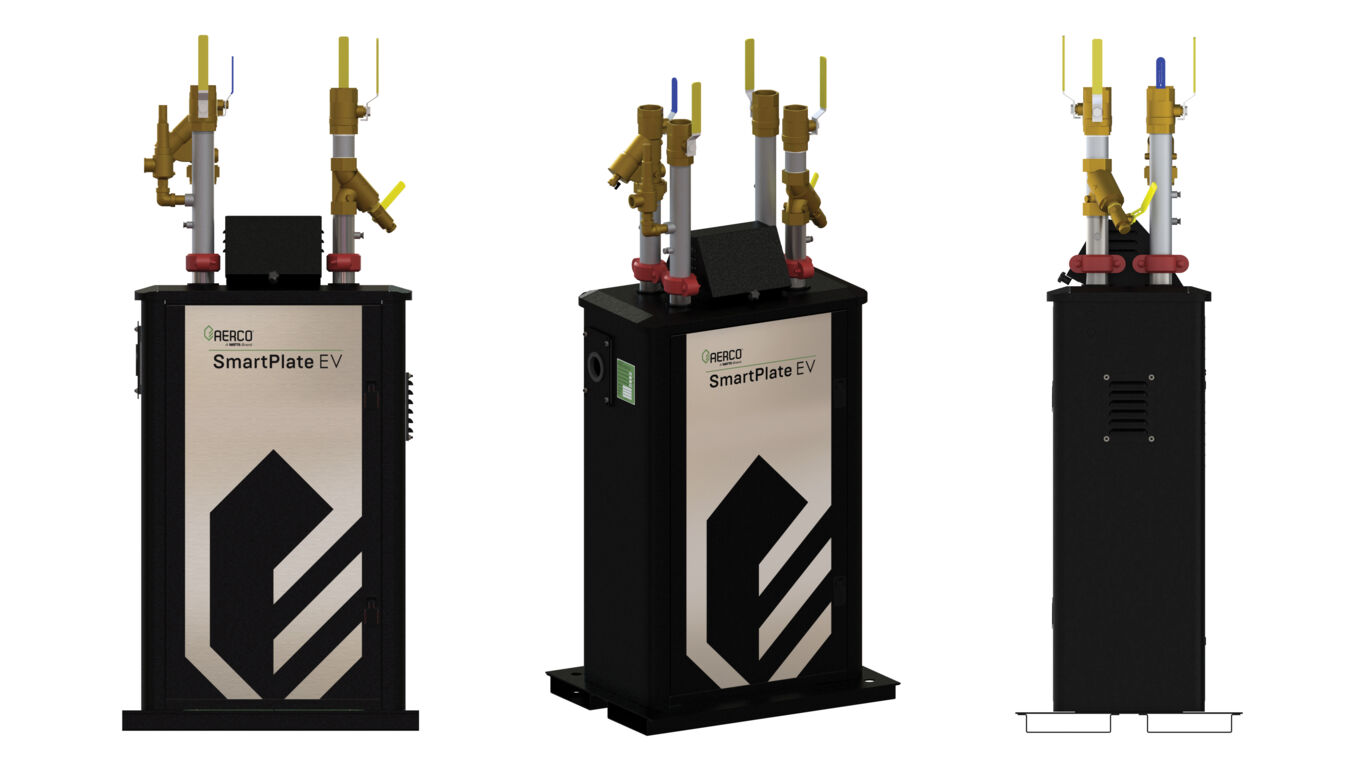

SmartPlate EV
- Brazed plate double wall water heaters
- Turn-key tankless solution that ships fully assembled
- Five sizes up to 4500 MBH
SmartPlate® EV heaters are specifically engineered to complement condensing boilers in low temperature applications to provide safe, reliable domestic hot water while promoting system-wide energy efficiency. Easy to install, these compact heaters offer single point header connections for domestic hot water, cold water, boiler water inlet, boiler water outlet and electrical power supply and are available in five sizes able to support loads ranging from 10 to 90 gallons per minute.

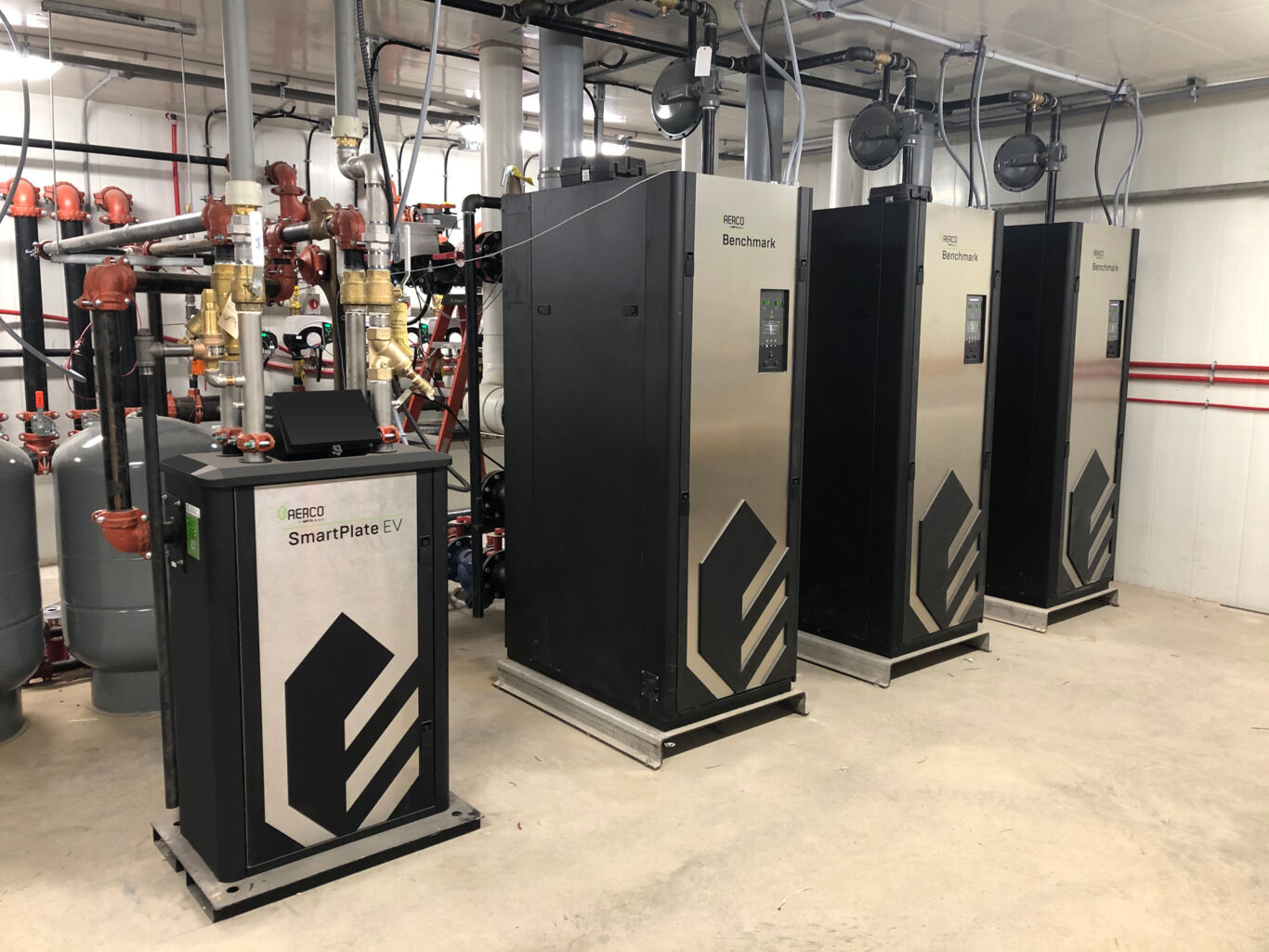

When paired with a condensing hydronic boiler in a combination plant, SmartPlate water heaters can utilize boiler water as little as 5°F above the required potable water temperature to minimize radiation losses and maximize boiler efficiency.

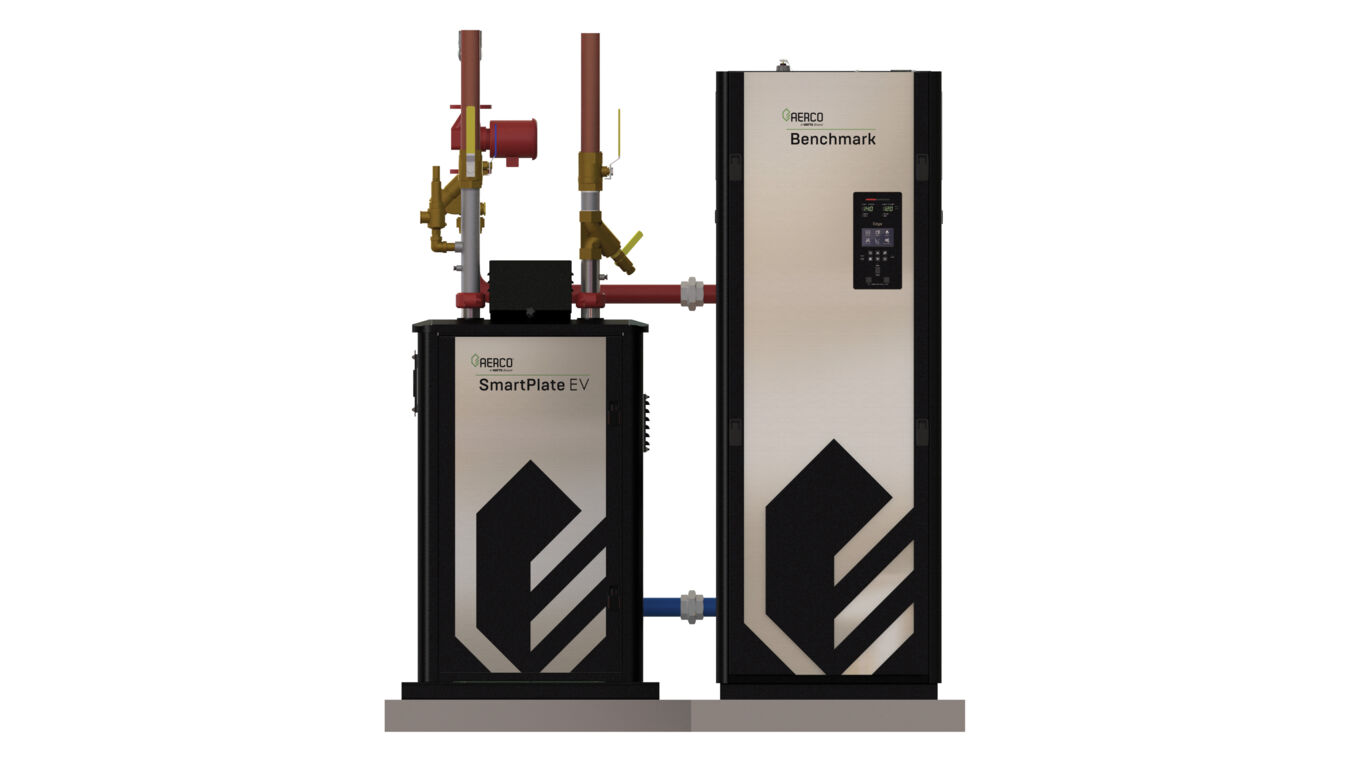

The SmartPlate EV pairs best with AERCO's Benchmark boilers due to its ability to seamlessly communicate with these boilers. To ensure longevity, all water wetted (potable water side) parts are stainless steel, copper or copper alloy materials.
Features and Benefits
- Lower return water temperature increases overall plant efficiencies when paired with condensing space heating system
- Precisely matches energy input to system’s load while maintaining a ±4°F temperature control
- Two-way or three-way valve configuration
- Ultra-compact footprint of <6ft2
- Low operating costs
- Option for up to 300 PSIG domestic and boiler water operation
- Fully modulating variable primary input
- Packaged with controller and 3-way electronic valve
- Field adjustable for 2- or 3-way application
- Supports BAS Integration
- All stainless steel, copper or copper alloy wetted (potable water side) surfaces
- Supports up to 90 gpm loads
Supports a Variety of Applications
- LTBW; up to 300 PSIG, 190°F
- Set point range 50°F to 180°F
- Single or multiple installation
- Ideal for New or Retrofit
- DHW: Up to 300 PSIG
Options and Accessories
DigiTemp Jr
ProtoNode Gateway
Domestic Water Storage Tank
ADMS (AERCO Digital Mixing Station)
Packaged Heater
Shipped completely assembled and ready for immediate hook-up; includes heat exchanger, full controls package with 3-way electronic control valve. The package can be operated in 2-way or 3-way configurations.
Electronic Controls
AERCO's exclusive electronic control system combines a control box assembly with all circuitry, a flowmeter installed at the cold water inlet for feed-forward sensing, feedback sensors and voltage regulator. To maintain optimal temperature control, the system utilizes PID algorithms to monitor outlet temperature and change control valve position. The system also includes an overtemp limit switch.
Modbus Communications
The SmartPlate EV includes Modbus RS485 communications to daisy chain with a Benchmark or Benchmark Platinum boiler plant and to connect to Building Automation or Energy Management Software.
Dry Contacts
Included terminals for remote "High Limit Tripped Status" indication.
