Modulex EXT in Small Healthcare Facilities

Modulex EXT in Small Healthcare Facilities

The Modulex EXT boiler is perfect to provide space heating at healthcare facilities with smaller heat loads. Modulex EXT can also be placed outside if required by the application.

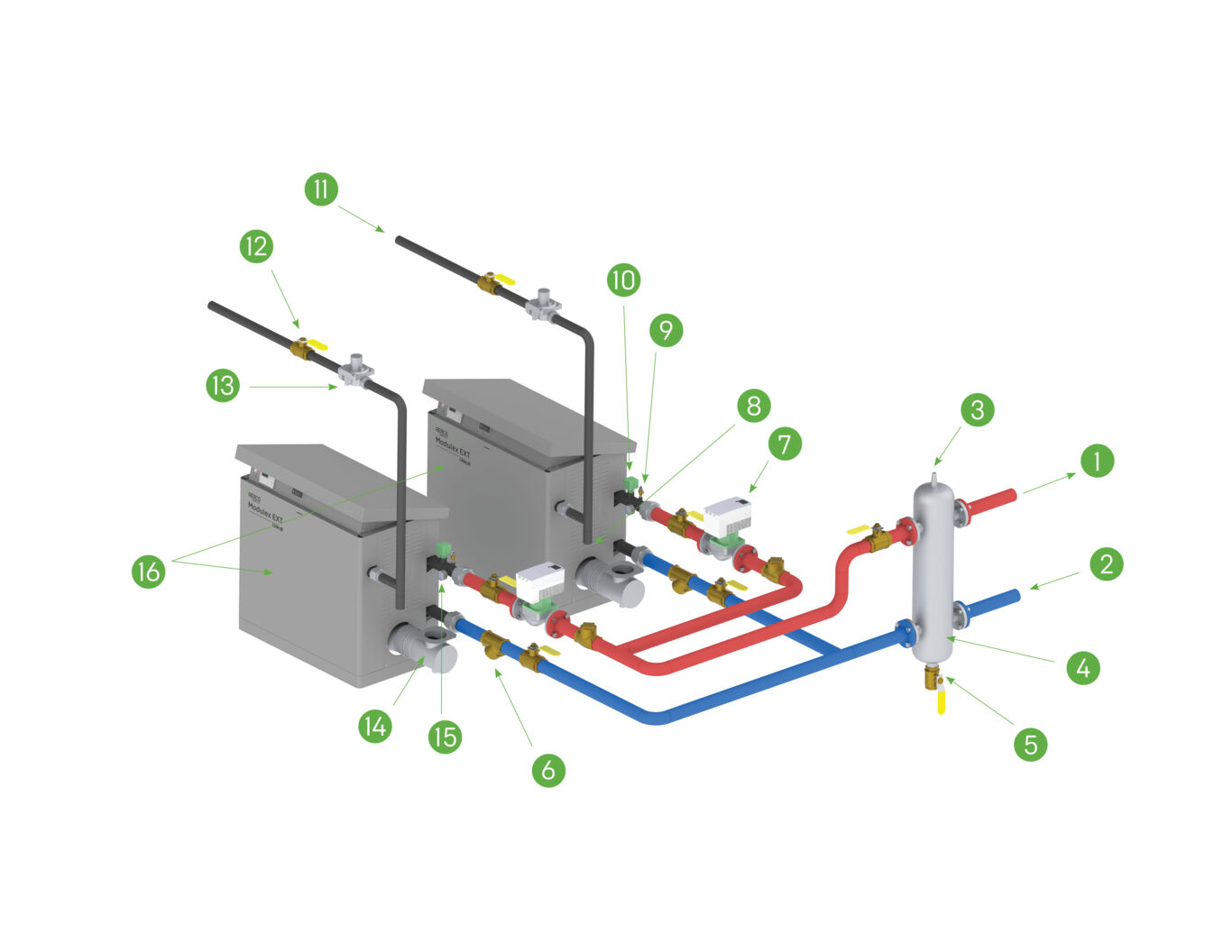

  1. Secondary/System Return
  2. Secondary/System Supply
  3. Air Vent
  4. Hydraulic Separator
  5. Drain Valve
  6. Mandatory Boiler Strainer
  7. Mandatory Primary Pump
  8. Dirt Trap
  9. Relief Valve
  10. Flow Switch
  11. Gas Supply
  12. 3” Manual Shut-off Valve
  13. Gas Pressure Regulator
  14. Exhaust Connection
  15. Tridicator
  16. Modulex EXT Boilers
