MFC and SmartPlates in Stadiums

MFC and SmartPlates in Stadiums

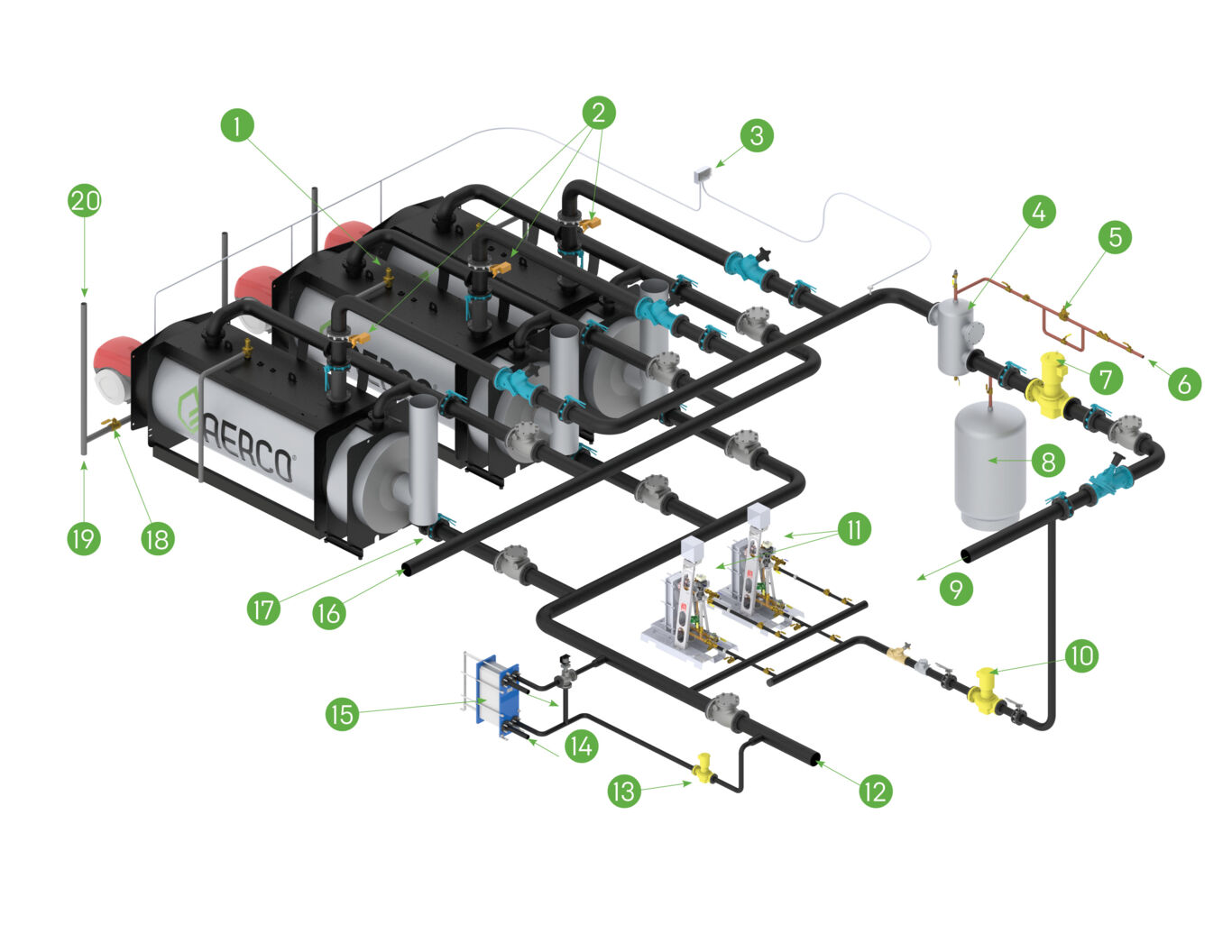

This combination system features MFC boilers units for space heating, SmartPlate water heaters for domestic hot water, and a snow melt system through an external heat exchanger to optimize efficiency and safety at facility.


  1. Relief Valves
  2. Sequencing Valves
  3. Sequencing Panel
  4. System Air Separator
  5. Pressure Reducing Fill Valve
  6. System Make-up Water Supply
  7. System Pump
  8. Expansion Tank
  9. System Supply
  10. Combination System Pump
  11. SmartPlate Water Heaters
  12. Low Temp. System Return
  13. Snowmelt System Pump
  14. Snowmelt Return/Supply
  15. Heat Exchanger (supplied by others)
  16. High Temp. System Return
  17. Condensate Drain Trap
  18. Manual Shutoff Valve
  19. Dirt Trap
  20. Gas Supply
