MFC and SmartPlate for Mission Critical Facilities

MFC and SmartPlate for Mission Critical Facilities

The MFC (Multi-Fuel Condensing) boiler and SmartPlate water heater combination system is ideal for Mission Critical Facilities that need space heating and domestic hot water and back-up fuel capabilities (MFC).

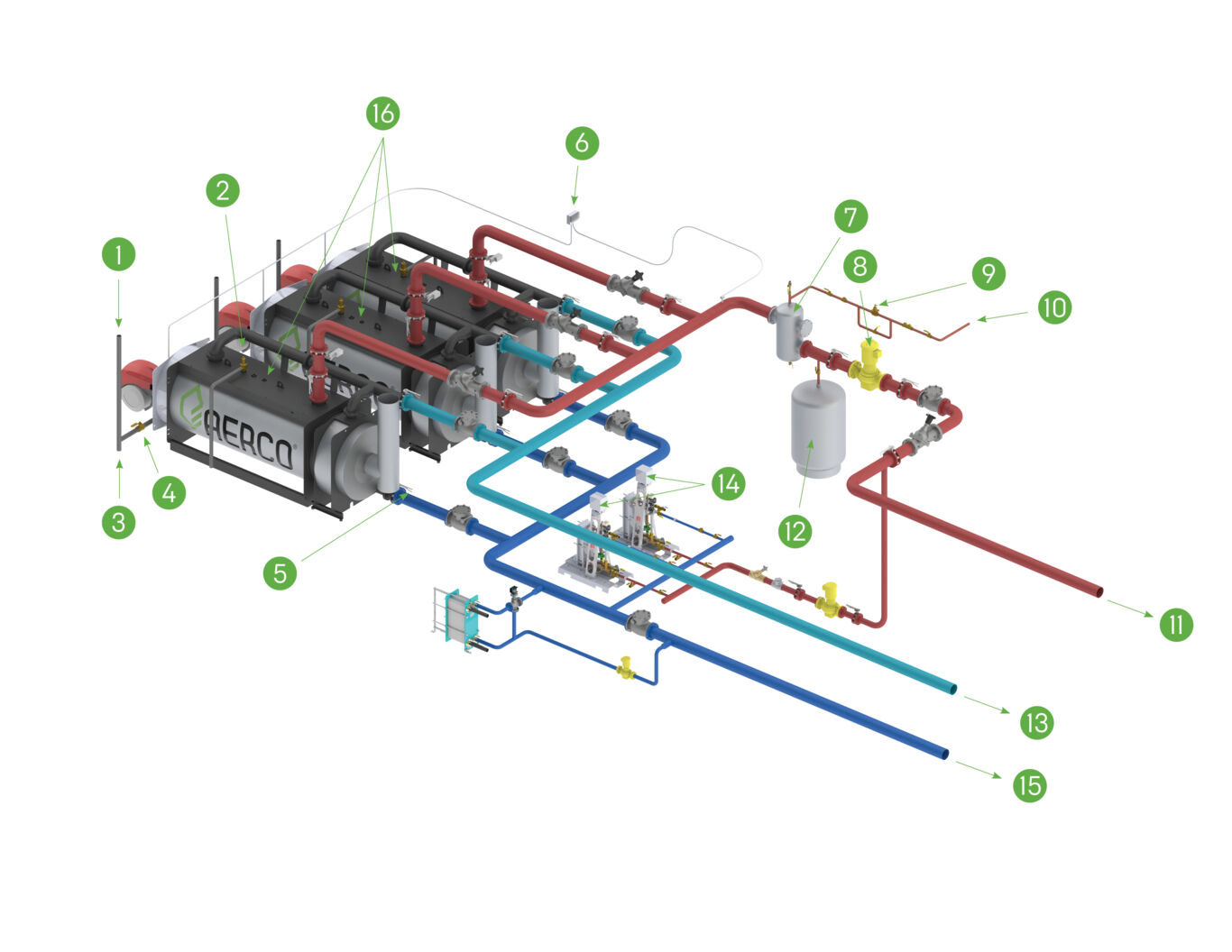

  1. Gas Supply
  2. Relief Valves
  3. Dirt Trap
  4. Manual Shutoff Valve
  5. Condensate Drain Trap
  6. Sequencing Panel
  7. System Air Separator
  8. System Pump
  9. Pressure Reducing Fill Valve
  10. System Make-up Water Supply
  11. System Supply
  12. Expansion Tank
  13. High Temp. System Return
  14. SmartPlate Units
  15. Low Temp. System Return
  16. MFC Boilers
