Innovations in Locker Rooms

Innovations in Locker Rooms

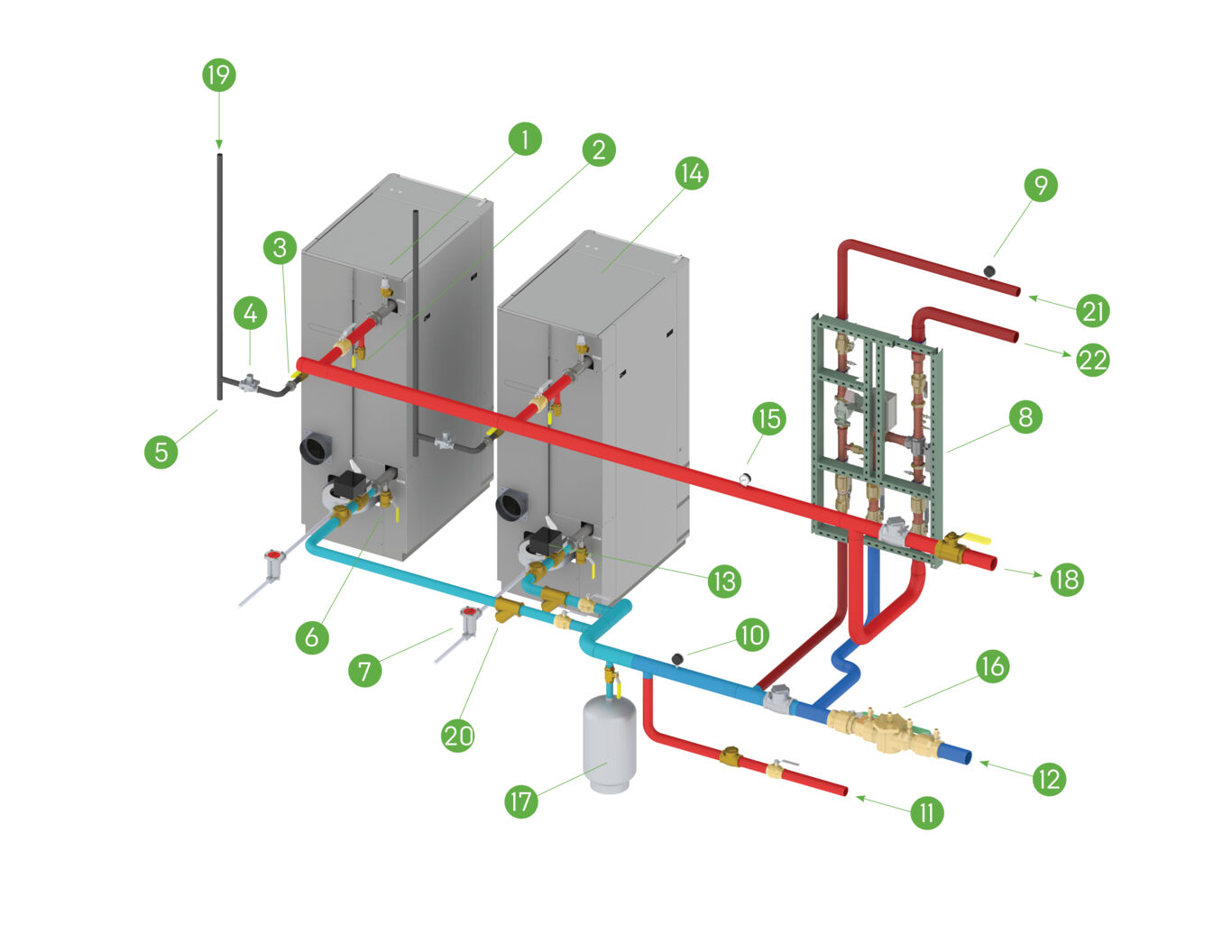

Multiple Innovation water heaters provide domestic hot water for the load requirements of stadium locker rooms and showers.


  1. Relief Valve
  2. Hose Connection
  3. Manual Gas Shutoff
  4. Gas Regulator
  5. Dirt Trap
  6. Shell Drain Valve
  7. Condensate Drain Trap
  8. ADMS
  9. Thermometer
  10. Thermometer
  11. 140°F Recirculation
  12. Cold Water In
  13. Sequencing Valve
  14. Innovation Water Heaters
  15. Thermometer
  16. Backflow Prevention
  17. Expansion Tank
  18. 140°F Hot Water Out
  19. Gas Inlet
  20. Mandatory Strainer
  21. 120°F Recirculation
  22. 120°F Tempered Hot Water Out
