Combination System in Office Buildings

Combination System in Office Buildings

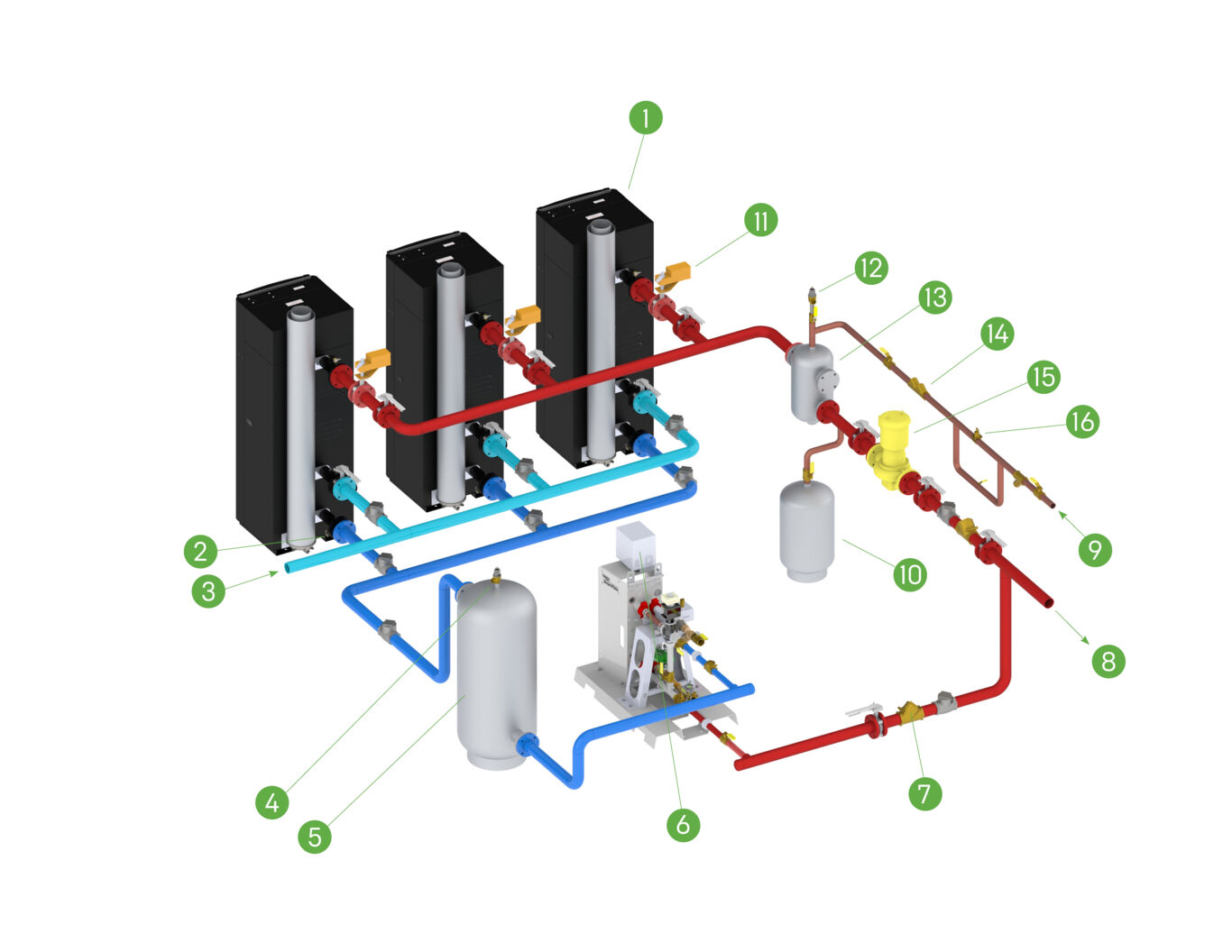

This office building uses multiple Benchmark boilers and a SmartPlate water heater in a combination system to generate reliable energy-saving space heating and domestic water heating.


  1. Benchmark Boilers
  2. Shell Drain Valve
  3. High Temp. System Return
  4. Relief Valve
  5. Buffer Tank
  6. SmartPlate Water Heater
  7. Balancing Valve
  8. System Supply
  9. Water Supply
  10. Expansion Tank
  11. Sequencing Valve
  12. Automatic Air Vent
  13. System Air Separator
  14. Backflow Prevention
  15. System Pump
  16. Pressure Reducing Fill Valve
