Combination System in High-Rise Apartments

Combination System in High-Rise Apartments

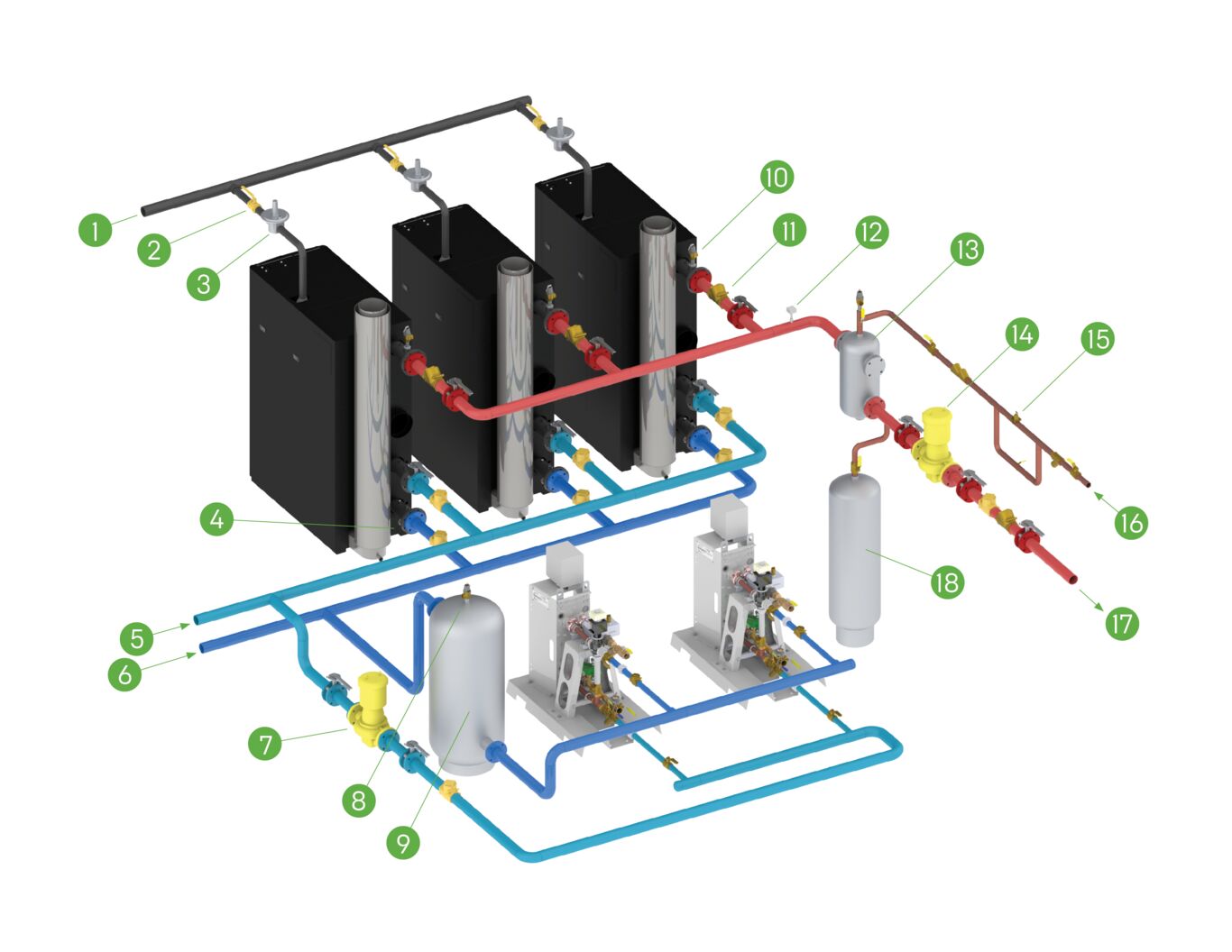

This multifamily apartment uses multiple Benchmark boilers and SmartPlate water heaters in a combination system to generate reliable energy-saving space heating and domestic water heating. This provides a great deal of flexibility to the application.


  1. Gas Inlet
  2. Manual Gas Shutoff Valve
  3. Gas Regulator
  4. Shell Drain Valve
  5. High Temp. System Return
  6. Low Temp. System Return
  7. DHW System Pump
  8. Automatic Air Vent
  9. Buffer Tank
  10. Relief Valve
  11. Balancing Valve
  12. Header Temperature Sensor
  13. System Air Separator
  14. System Pump
  15. Pressure Reducing Fill Valve
  16. Water Supply
  17. System Supply
  18. Expansion Tank
