Benchmarks and SmartPlates for Ski Resort

Benchmarks and SmartPlates for Ski Resort

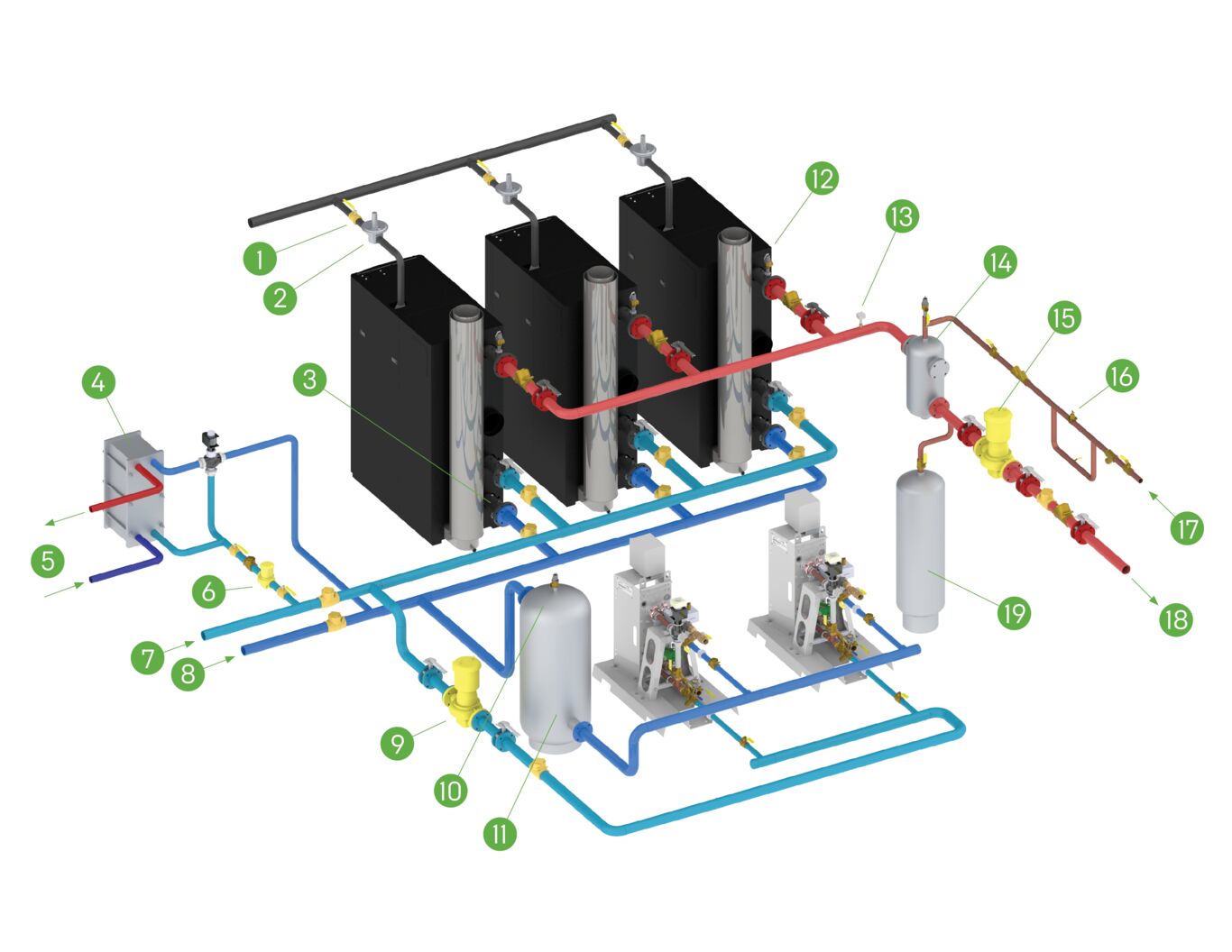

This ski resort uses multiple Benchmarks and SmartPlates combined with an external heat exchanger to provide space heating, domestic hot water and a snowmelt system to ensure the comfort and safety of guests.


  1. Manual Gas Shutoff
  2. Gas Regulator
  3. Shell Drain Valve
  4. Heat Exchanger (supplied by others)
  5. Snowmelt Return/Supply
  6. Snowmelt System Pump
  7. High Temp. System Return
  8. Low Temp. System Return
  9. DHW System Pump
  10. Automatic Air Vent
  11. Buffer Tank
  12. Relief Valve
  13. Header Sensor
  14. System Air Separator
  15. System Pump
  16. Pressure Reducing Fill Valve
  17. Water Supply
  18. System Supply
  19. Diaphragm Type Expansion Tank
