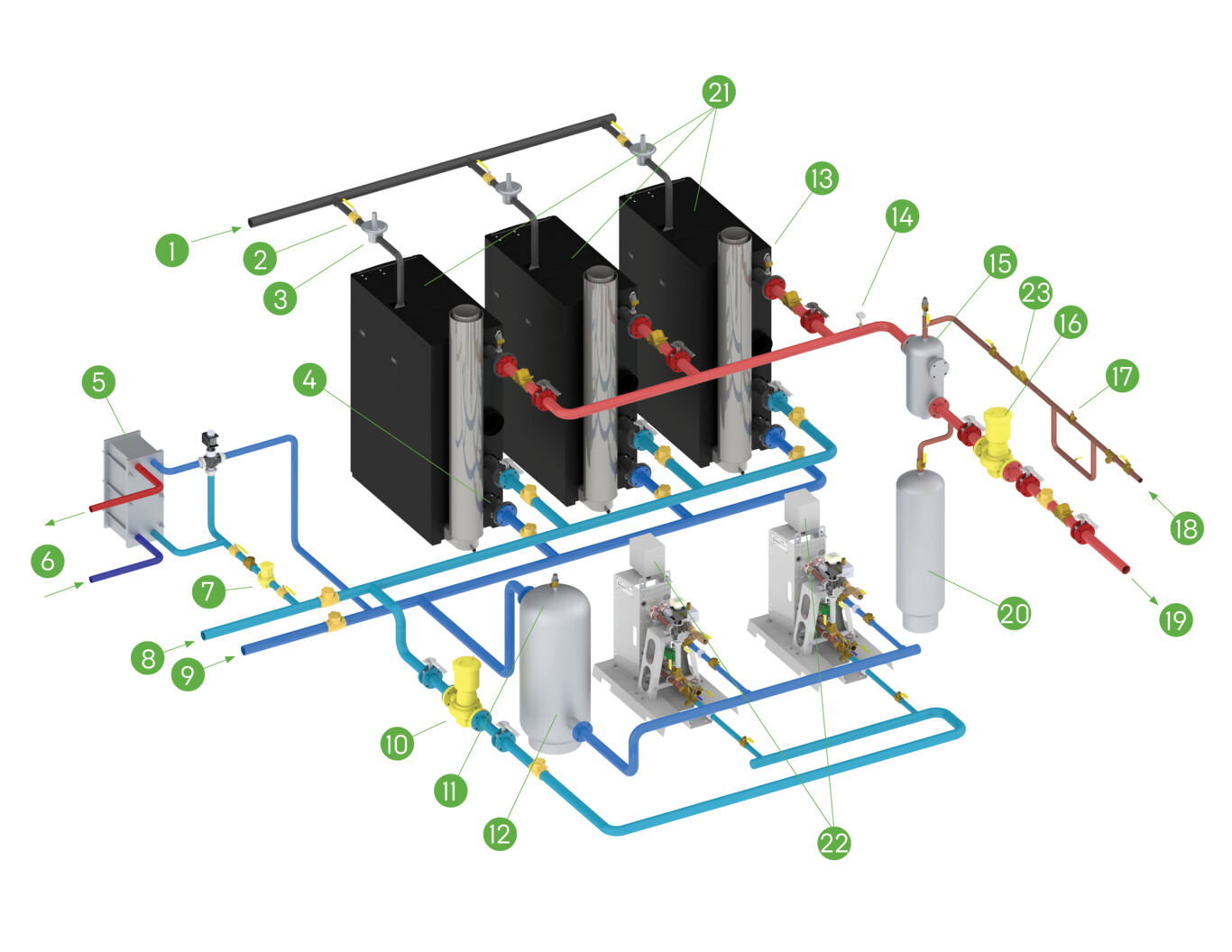

Benchmark and SmartPlate for Universities

This combination Benchmark boilers and SmartPlate water heaters system is a smart choice for universities delivering energy-efficient space heating and domestic water heating for dormitories, classrooms, libraries, cafeterias and other facility buildings throughout the campus.


  1. Gas Inlet
  2. Manual Gas Shutoff Valve
  3. Gas Regulator
  4. Shell Drain Valve
  5. Heat Exchanger (supplied by others)
  6. Inlet/Outlet
  7. DHW System Pump
  8. High Temp. System Return
  9. Low Temp. System Return
  10. DHW System Pump
  11. Automatic Air Vent
  12. Buffer Tank
  13. Relief Valve
  14. Header Temperature Sensor
  15. System Air Separator
  16. Water Supply
  17. Pressure Reducing Fill Valve
  18. Water Supply
  19. System Supply
  20. Expansion Tank
  21. Benchmark Platinum Boilers
  22. SmartPlate Water Heaters
  23. Backflow Preventor
