B+II WaterWizard for Universities with Steam

B+II WaterWizard water heaters are best used in schools and universities with steam plants and applications where a double wall heat exchanger is not required.

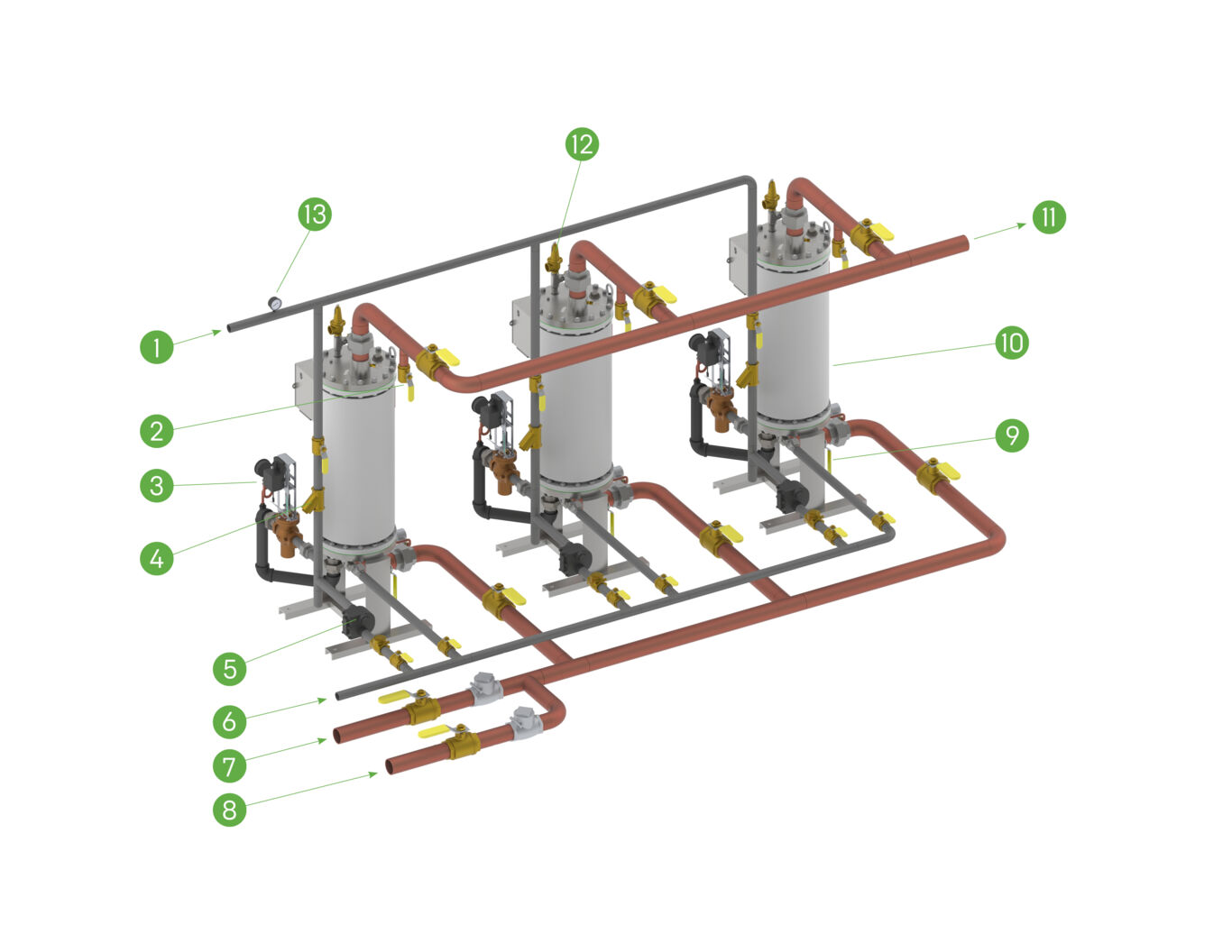

  1. Steam In
  2. Hose Connection
  3. Control Valve
  4. Strainer
  5. Steam Trap
  6. Condensate Out (drain freely by gravity)
  7. Cold Water In
  8. House Recirculation (when employed)
  9. Drain Valve
  10. B+II WaterWizard
  11. Hot Water Out
  12. Relief Valve
  13. Pressure Gauge
