AM Series in Retirement Village

AM Series in Retirement Village

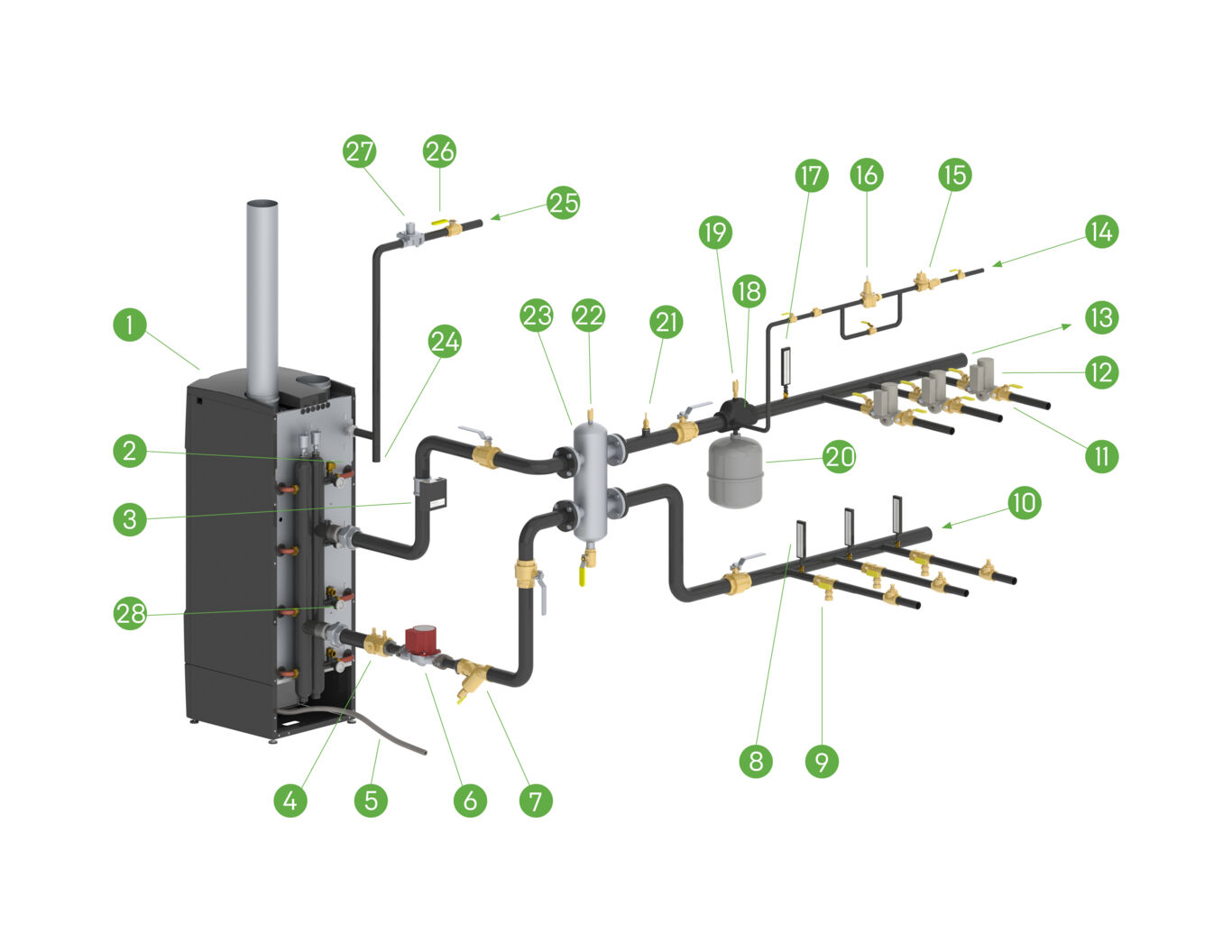

Compact, quiet AM Series water heaters feature internal redundancy and superior turndown when providing efficient space heating to residents in retirement facilities.


  1. AM Series
  2. Relief Valve
  3. Low Water Cutoff Switch
  4. Circuit Setter
  5. Condensate Hose
  6. System Pump
  7. Strainer
  8. Thermometer
  9. Purge Valve
  10. System Return
  11. Isolation Flange
  12. Zoning Pump
  13. System Supply
  14. Water Supply
  15. Backflow Prevention
  16. Pressure Reducing Fill Valve
  17. Thermometer
  18. System Air Seperator
  19. Automatic Air Vent
  20. Expansion Tank
  21. Header Sensor Switch
  22. Air Vent
  23. Hydraulic Seperator
  24. Dirt Trap
  25. Gas Inlet
  26. Manual Gas Shutoff Valve
  27. Gas Regulator
  28. Tridicator
